PS

PS guarantees superior performance to meet the most demanding targets in productivity and flexibility

Superior performance

The Prima Power PS brake stands for the outmost in flexibility and productivity. It has been designed for precision and productivity in the most demanding manufacturing facilities.

The servo hydraulic system maximizes ram speeds, which can reach up to 200 mm/s both in approach and return. Working speed is programmable to ensure bending without loss of product quality or operator safety. The power boost function enables a maximum bending speed of 20 mm/s, which can be used if allowed by local safety regulations.

Lazer Safe’s “Block Laser” system can save up to 2 or more seconds per cycle.

Highlights

• solid architecture based on FEM optimized welded main frame and independent auxiliary bed referred frames for  ram position measuring
• electronic synchronized hydraulic drives allowing programmable bending speed as well as off-center and conic bending
• 400 mm stroke and roll-guided ram
• Prima Electro Open control: intuitive 17” touch screen control based on a graphical interface with automatic bending sequencing
• dual articulation support arm with height adjustment for flexible control panel positioning
• “Block Laser” safety equipment by Lazer Safe to maximize safety, productivity and tool crash protection
• daylight 630 mm
• stroke 400 mm
• approaching and returning speeds up to 200 mm/s
• Wila, Wilson, European and American tooling systems

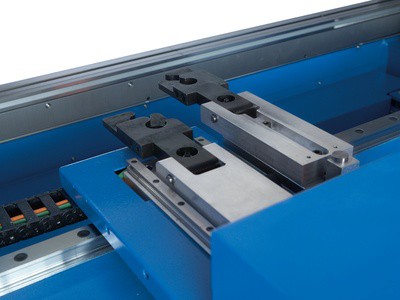

• up to 6-axis high speed back gauges
• NC front supports with 150 kg each payload
• robot interface
