THE PROFIT
THE FOOTPRINT
TECHNICAL DATA

Productivity

Considerably shorter cycle times with consequent reduction in production costs

Efficiency

Very low power consumption, minimum maintenance and consumables
Fastest movements executed by lightweight head

User-friendliness

Easy and fast operating interface – fast setup and less waiting times
Various automatic operations and functions available
Less energy, less waste of material, no laser gases - Less CO2

Higher laser wall-plug efficiency, less cooling capacity required, less heat generation - Less CO2

High efficiency – more output during machine runtime

Compact and automated – less factory space and logistics
Work area
X 3,048 mm; Y 1,524 mm; Z 115 mm; U,V 100 mm

Speed
(combined main + local axes) 200 m/min

Acceleration
6 g during cutting

Laser source Fiber 2,000 W

Ultra fast flat cutting machine with fiber laser: over 1000 holes per minute. A new, unique machine concept allows unbeatable cycle times with reliability and quality.

The laser speed

SYNCRONO® is the top performance 2D laser machine by Prima Power equipped with a high brilliance and high efficiency fiber laser for the ultra-fast cutting of thin sheet metal.

With its unique and revolutionary architecture and its 6g acceleration, SYNCRONO® is the only machine on the market which can match the dynamics necessary for fiber laser technology on thin gauge sheets.

The energy efficiency of the SYNCRONO® (small masses execute faster movements) is further enhanced with fiber laser. This technology allows a dramatic reduction of the electric consumptions and maintenance costs, thanks to the use of lower powers and to the high efficiency and simplicity of the source.

Fiber laser allows a widening of the range of materials that can be cut with SYNCRONO®, including high reflecting aluminium alloys, brass and copper.

Highlights

two machines in one: two additional local axes synchronized with the main machine axes to obtain the best cycle times and cutting quality
6 g acceleration during cutting – over 1,000 holes per minute

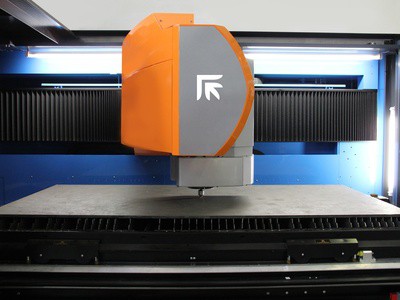

focusing head with unique and revolutionary parallel kinematics architecture
active anti-vibrations system prevents impulsive stress on the structure granting extreme reliability even at the highest speed
compact design for minimum footprint and easy transportation and installation
synthetic granite frame for best thermal stability and vibration damping
maximum accessibility to the machine
2 kW high brilliance fiber laser: over 30% wall-plug efficiency, low maintenance and consumables
fast sensor change from 5” to 7.5” for cutting thicker materials
Independent and programmable control of the focal position
user-friendly and ergonomic P30L CNC with 17” LCD touch screen and trackball
patented algorithms for the automatic control of the local and main axes
wide range of modules for the automation of the material handling and storage
