MCC2013-VG for High-Efficiency Mold Machining

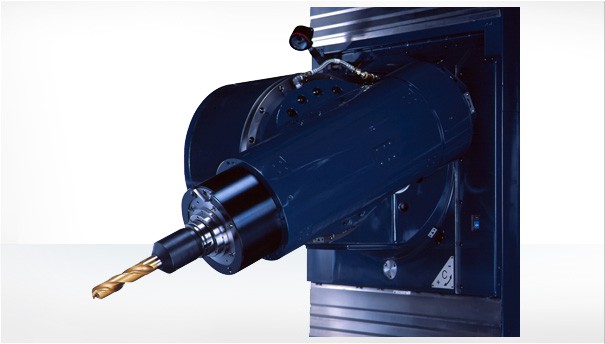

The MCC2013-VG HMC is the complete package for high-efficiency mold machining with features that enable multi-face machining in a single setup. These include a high-speed 15,000 min-1 spindle, 16m/min cutting feedrate, high-speed, high-accuracy GI.3 control and a thermal stability system. The MCC also features a semi-floating slideway system to provide a cutting feedrate of 16 m/min, even with heavy workpieces on the table. The adoption of 0.1µm GI.3 control substantially improves mold machining accuracy and surface quality.
Specs
| Pallet | 1500 x 1200 mm (1250 x 1250 mm Pallet option) |
| X | 2,000 mm |
| Y | 1,300 mm |
| Z | 1,300 mm |
| Aaxis | ±30° (1° increments) |
| Baxis | 360° (0.0001° increments) |
| Caxis | ±185° (1° increments) |
| Spindle RPM | 12,000 |
| Rapid Traverse | 16,000 mm/min |
| Cutting Feedrate | 16,000 mm/min |
| Maximum Workpiece | ø1,900 x 1,700 mm |
| Maximum Payload | 10,000 kg |
| ATC Capacity | 30 (60, 96,120) |
| Tool to Tool | 9 sec |
| Chip to Chip | |
| Maximum Tool Length | 550 mm |
| Maximum Tool Diameter | 200 mm (with limitations) |
| Maximum Tool Weight | 20 kg |
