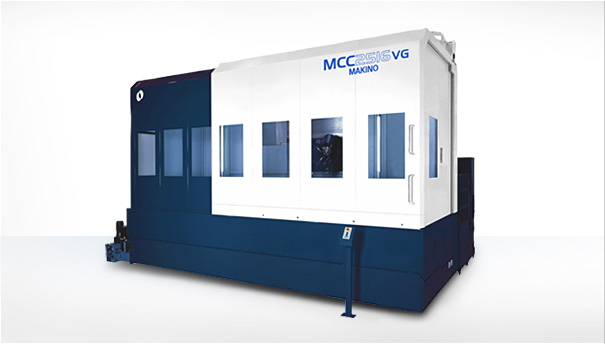

The Makino MCC2516-VG HMC streamlines the machining and processing of large plastic injection molds. The variable geometry head enables rough and finish of large molds in a single setup. The tilting and rotating head can be oriented for the optimal approach to machining complex surfaces. This enables the use of shorter tools to reduce vibration and improve tool life for high-quality blending and finishing. Exceptional performance and finish capability is achieved through superior motion control and thermal stability, resulting in shorter lead-times to produce large molds.
Specs
| Pallet | 3,000 mm x 1,600 mm |
| X | 2500 mm |
| Y | 1,600 mm |
| Z | 1,300 mm |
| Aaxis | ±30° (1° increments) |
| Baxis | None |
| Caxis | ±185° (1° increments) |
| Spindle RPM | 12,000 |
| Rapid Traverse | 16,000 mm/min |
| Cutting Feedrate | 16,000 mm/min |
| Maximum Workpiece | 3,000 x 1,800 x 2,250 mm |
| Maximum Payload | 15,000 kg |
| ATC Capacity | 30 (60, 96, 120) |
| Tool to Tool | 18 sec |
| Chip to Chip | |
| Maximum Tool Length | 550 mm |
| Maximum Tool Diameter | 200 mm (with limitations) |
| Maximum Tool Weight | 20 kg |
