E Series

    • High productivity due to high speeds, ease of operation and available options
    • Extremely versatile system: manual processing either from A- or B-side or automated production cell using optional automation = suites all needs
    • Robust “O” type frame for perfect tool alignment = very accurate punching
    • Flexible turret = always selected according to your needs
    • Brush tables for low noise level and to maintain perfect sheet surface quality
    • Individual clamp movement with programmable clamp setting (PCS) = 100 % sheet utilization
    • Fully servo-electric – no hazardous oil waste
    • Operations can be handled from one side = efficient factory logistics
    • Average power consumption: 5 kW = less use of energy
    • Small power supply connection  = works everywhere
    • Fewer critical components compared to hydraulic machines = low maintenance costs
    • Robust ”O” type frame for perfect tool alignment = less wearing of punching tools
    • Extremely high servoelectric punching and forming accuracy = less scrap, accurate forming
    • Fast and efficient = higher production volume and time savings
  • E5
    • Sheet size 2,500 mm x 1,250 mm without repositioning
    E6
    • Sheet size 3,000 mm x 1,500 mm without repositioning
    E8
    • Sheet size 4,300 mm x 1,500 mm
    • Sheet size 3,000 mm x 1,500 mm without repositioning
    All models
    • Punching speed up to 1000 hpm / 1 mm between holes
    • Punching forces 20 or 30 ton (22 or 33.7 US ton) up to 8 mm punching capacity
    • Tool rotation speed 250 rpm

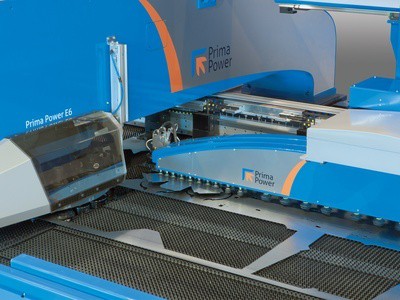

High-performance multipurpose servo-electric punching cell

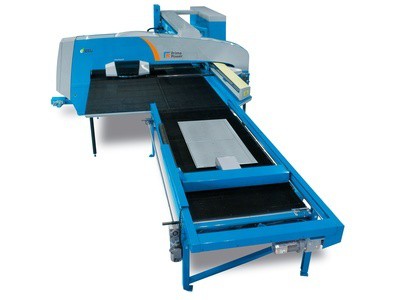

High Performance stand alone punching cell or automated production cell

An early and major step towards sustainable fabrication was taken on the introduction of the servo-electric E series turret punch press in 1998. Now Prima Power introduces already the third generation of this series.

The inherent benefits of servo-electric technology include energy efficiency, versatility and accuracy and low maintenance cost. This amounts to superior fabrication capabilities as well as outstanding operation economy, i.e. truly remarkable savings.

The servo-mechanically actuated punching stroke is NC-controlled and thus, in addition to high-performance punching, outstandingly accurate forming capacity is available.

High repeatability facilitates forming, roll forming, marking etc. and shortens set-up times.

A totally re-designed turret can be chosen for the new E series; it can be customized and optimized for any requirement. Simultaneously, a record-breaking number of 384 tools can be available in the turret; thus unnecessary set-ups can be easily avoided. The original fully customized turret layout is also available. The maximum number of index tools has also been raised to 128.

Green means – more profit with smaller footprint

Green means a win-win for you and sustainable development

Sustainability adds to manufacturing efficiency and productivity.

Your customers, your employees and the community you operate in demand it more and more.

Sustainability and social responsibility are characteristics of a modern company and add to competitiveness.

They make a difference between the best and the rest.

And you make better sheet metal components at lower cost.

Highlights

  • All the benefits from Ex Series and more
  • Tapping, wheeling, upforming and punching capabilities
  • Cluster tool and forming possibility in E-station
  • 300 kN ram force, positioning speed 150 m/min, Index speed 250 rpm
  • Energy efficiency and low maintenance cost
  • Full range of various options
  • Versatility and accuracy
  • Information flow from Tulus® user interface
  • The turret layout is always customer-specific and up to 384 tools
  • Multi-Tools® for additional punching versatility
  • Upforming with programmable NC axis



Automation

  • Express – longitudinal loading and unloading solution
  • Compact Express – fast loading and unloading with a small footprint
  • LST – compact solution for loading and component sorting
  • SU3 – smart sorting solution for small work chute parts
  • FMS – connection to Night Train FMS® or COMBO FMS® storage possible when using LST device
