Ex Series

    • Extremely versatile system: manual processing either from A- or B-side or automated production cell using optional automation = suites all needs
    • Robust “O” type frame for perfect tool alignment = very accurate punching
    • Flexible turret = always selected according to your needs
    • Brush tables for low noise level and to maintain perfect sheet surface quality

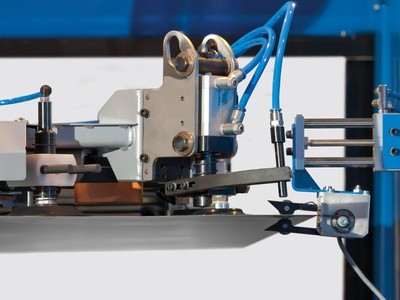

    • Individual clamp movement with programmable clamp setting (PCS) = 100 % sheet utilization
    • Fully servo-electric = no hazardous oil waste
    • Operations can be handled from one side = efficient factory logistics
    • Average power consumption: 4 kW = less use of energy
    • Small power supply connection: 3 x 15 kVA = works everywhere
    • Fewer critical components compared to hydraulic machines = low maintenance costs
    • Robust ”O” type frame for perfect tool alignment = less wearing of punching tools

  • E5x
    • Sheet size 2,500 mm x 1,250 mm without repositioning
    E6x
    • Sheet size 3,000 mm x 1,500 mm
    • Sheet size 2,500 mm x 1,500 mm without repositioning
    E8x
    • Sheet size 4,300 mm x 1,500 mm
    • Sheet size 2,500 mm x 1,500 mm without repositioning
    All models
    • Punching speed up to 700 hpm / 1 mm between holes
    • Punching forces 17, 20 or 23 ton (19.1, 22 or 25.3 US ton) up to 8 mm punching capacity
    • Tool rotation speed 133 rpm

Prima Power’s Ex series offers state of the art in servo-electric punching technology, based on pioneering experience, in an eminently flexible and affordable package.

State of the art in servo-electric punching

An early and major step towards sustainable fabrication was taken on the introduction of the servo-electric E series turret punch press in 1998. Now Prima Power offers already the third generation of this series.

The genius of servo electric punching is how it combines energy savings and ergonomics with superb accuracy and productivity. The Ex series has been designed to offer versatile capacity made easy to utilize; Prima Power’s new machine control and user interface software with touch screen panel ensure fast set up and convenient operation. With the Prima Power Ex series, modern servo-electric punching productivity is truly within easy reach.

The servo-mechanically actuated punching stroke is NC-controlled and thus, in addition to high-performance punching, outstandingly accurate forming capacity is available.

Green means – more profit with smaller footprint

Green means a win-win for you and sustainable development

Sustainability adds to manufacturing efficiency and productivity.

Your customers, your employees and the community you operate in demand it more and more.

Sustainability and social responsibility are characteristics of a modern company and add to competitiveness.

They make a difference between the best and the rest.

And you make better sheet metal components at lower cost.

Highlights

  • Customer oriented punching solution
  • Flexible customer-specific turret layout up to 250 tools
  • Multi-Tools® for additional punching versatility
  • Rugged “O” frame
  • 17/20/23 tons punching force up to 8 mm
  • Low energy consumption and connection power
  • Various automation modules: SU3, LST, Compact Express
  • Work chute for max. 500 mm x 500 mm parts
  • Programmable clamp setting (PCS)
  • Intelligent stroke control (ISC)



Automation

  • Compact Express – fast loading and unloading with a small footprint
  • LST – compact solution for loading and component sorting
  • SU3 – smart sorting solution for small work chute parts
  • FMS – connection to Night Train FMS® or COMBO FMS® storage possible when using LST device
