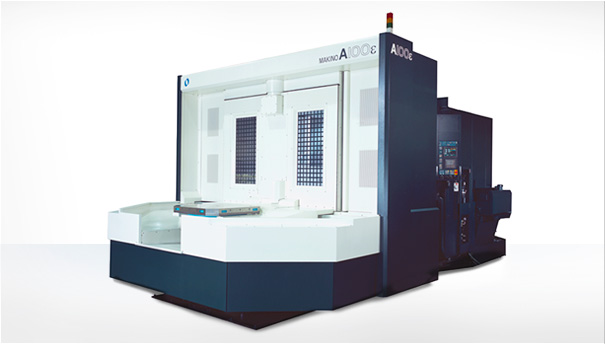

The A100E provides a large workzone of 74.8” in diameter by 59.1” in height larger than other Makino horizontal machining centers. It is 20 percent heavier than any other Makino a-Series machine, weighing in at a very stable 66,000 lbs., which ensures stability for high-performance machining requirements. Cutting feedrates and rapid traverse rates are quick at 1,970 ipm (50m/min). The 0.4G acceleration performance is exceptional for a machine of this size. The A100E comes standard with a Makino GI control feature that allows for high feedrates.
Specs
| Pallet | 1,000 mm x 1,000 mm |
| X | 1,700 mm |
| Y | 1,350 mm |
| Z | 1,400 mm |
| Spindle RPM | 12,000 (8K, 18K) |
| Rapid Traverse | 50,000 mm/min |
| Cutting Feedrate | 50,000 mm/min |
| Maximum Workpiece | ø1,900 x 1,500 mm |
| Maximum Payload | 3,000 kg (option 5,000 kg) |
| ATC Capacity | 40 (90, 132, 188, 244, 302) |
| Tool to Tool | 1.7 secs |
| Chip to Chip | 5.5 secs |
| Maximum Tool Length | |
| Maximum Tool Diameter | 300 mm |
| Maximum Tool Weight | 20 kg (40 ATC), 30 kg (90 ATC and above) |
