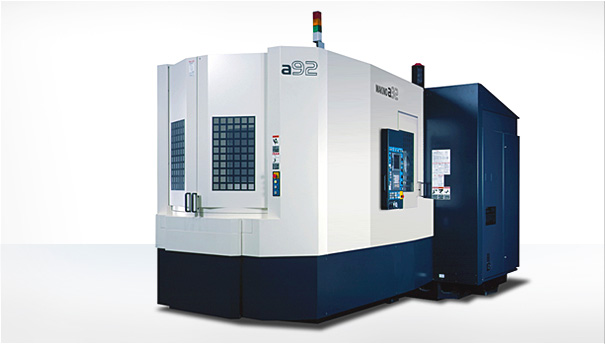

a92 HMC for Construction Equipment Manufacturing
The a92 brings high-efficiency machining to large part production. Designed for unparalleled stiffness and rigidity, the a92 is the ideal machine platform for diesel engine block and construction equipment manufacturing. High-thrust forces can be applied throughout the work zone without traditional limitations. This high performance translates to higher quality production, higher versatility and reliability—all contributing to a lower cost of manufacturing for those serving in agriculture, energy and construction equipment manufacturing industries.
Specs
| Pallet | 800 x 1,000 mm |
| X | 1,520 mm |
| Y | 1,250 mm |
| Z | 1,350 mm |
| Spindle RPM | 10,000 (8K, 20K) |
| Rapid Traverse | 50,000 mm/min |
| Cutting Feedrate | 50,000 mm/min |
| Maximum Workpiece | ø1,500 x 1,500 mm |
| Maximum Payload | 2,000 kg (option 3,000 kg) |
| ATC Capacity | 40 (60, 92, 148, 204, 316) |
| Tool to Tool | 1.9 sec |
| Chip to Chip | 5.4 sec |
| Maximum Tool Length | 900 mm |
| Maximum Tool Diameter | 356 mm (40/60 ATC), 350 mm (92 ATC and larger) |
| Maximum Tool Weight | 30 kg (40/60 ATC), 35 kg (92 ATC and larger) |
