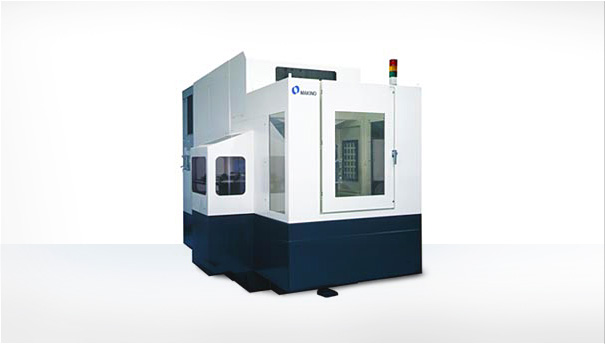

With its high speed and outstanding accuracy, the J4M is designed for flexible transfer lines and is primarily intended for the economic machining of aluminum parts such as cylinder heads and crankcases for four-cylinder motors, gearboxes and attaching parts. An innovative space- and energy-saving design adds to its flexibility. The J4M can be easily integrated into different automation concepts, thanks to its three axes in the tool and a fourth NC axis in the table.
Specs
| Pallet | 400 mm x 400 mm |
| X | 500 mm |
| Y | 560 mm |
| Z | 500 mm |
| Spindle RPM | 16000 |
| Rapid Traverse | 60,000 mm/min |
| Cutting Feedrate | 1,969 in/min |
| Maximum Workpiece | ø710mm x ø880mm |
| Maximum Payload | 880 lb |
| ATC Capacity | 15 tools (30 tool option) |
| Tool to Tool | 1.7 sec |
| Chip to Chip | 3 sec (15 atc) |
| Maximum Tool Length | 12.2″ |
| Maximum Tool Diameter | 4.3″ / 4.9″ with limitations |
| Maximum Tool Weight | 17.6 lb |
