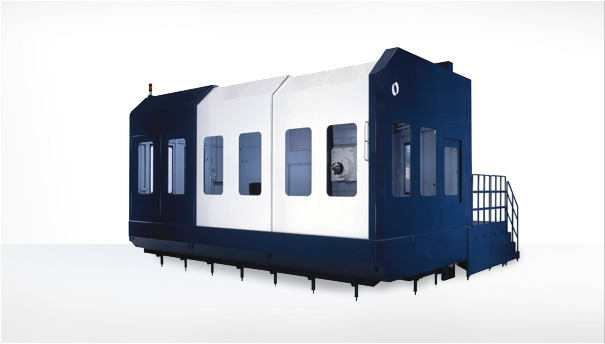

The Makino MCC3018 HMC is designed to streamline the machining and processing of large plastic injection molds. High-performance spindle technology allows for roughing and finishing in a single setup. High-acceleration motion control allows extraordinary blending and machining performance while maintaining or reducing cycle time, resulting in shorter lead-times to produce large molds.
Specs
| Pallet | 3000 x 1600 mm |
| X | 3000 mm |
| Y | 1800 mm |
| Z | 1500 mm |
| Spindle RPM | 15,000 (8K) |
| Rapid Traverse | 16000 mm/min |
| Cutting Feedrate | 630 in/min |
| Maximum Workpiece | 3000 x 1800 x 1900 mm |
| Maximum Payload | 33,000 lbs |
| ATC Capacity | 30 (60, 120, 180, 280) |
| Tool to Tool | |
| Chip to Chip | |
| Maximum Tool Length | 21.65″ |
| Maximum Tool Diameter | 7.87″ |
| Maximum Tool Weight | 44 lbs |
