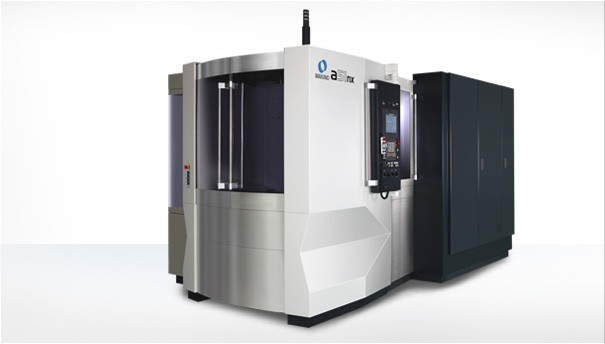

a51nx Built for High Performance Machining
The Makino a51nx is a 400mm horizontal machining center that builds on the highly successful a51 platform with key high performance machining technologies that take productivity, accuracy and machine reliability to the next level.
The 14,000-rpm high-speed, high-power spindle features 240 Nm of torque, making it well suited for ferrous and non-ferrous part production.
1G axis acceleration and a standard direct-drive motor B-axis minimizes non-cut times, whereas a robust casting design and roller-type linear guides ensure the entire a51nx work envelope can be effectively utilized.
Additionally, one-piece way covers (X and Z) and a dual-supported tool-change arm provide the foundation for industry-leading reliability and high performance machining capability.
Specs
| Pallet | 400 x 400 mm |
| X | 560 mm |
| Y | 640 mm |
| Z | 640 mm |
| Spindle RPM | 14,000 rpm (14K High Torque, 20K) |
| Rapid Traverse | 60,000 mm/min |
| Cutting Feedrate | 50,000 mm/min |
| Maximum Workpiece | ø630 x 900mm |
| Maximum Payload | 400 kg |
| ATC Capacity | 60 tools (optional 40, 134, 219, 313) |
| Tool to Tool | 0.9 secs |
| Chip to Chip | 2.2 secs |
| Maximum Tool Length (Cat) | 430 mm |
| Maximum Tool Length (HSK) | 420 mm |
| Maximum Tool Diameter | 170 mm |
| Maximum Tool Weight | 12 kg |
