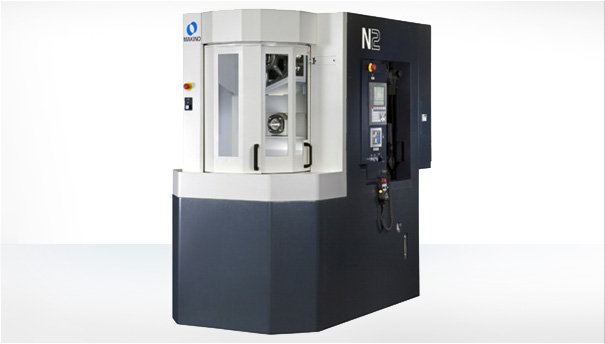

The N2 is a 4-axis horizontal machining center that delivers high-productivity machining capabilities in a compact design that requires a mere 26 square-feet of floor space. Key N2 design features work in concert to slash non-cutting times:
- 300mm direct drive 4th axis completes 90° rotations in just 0.65 seconds
- Spindle acceleration to a 20,000 rpm maximum in 0.8 seconds
- Responsive Z-axis acceleration of 1.4G
Productivity and throughput of common drilling and tapping operations are up to 40 percent faster on the N2 compared to traditional 400mm machines. Efficient chip / coolant management and an automation ready design make the N2 the “right-sized” solution for small high-volume parts production.
Specs
| Pallet | 300 mm ø |
| X | 300 mm |
| Y | 300 mm |
| Z | 230 mm |
| B Axis | 360° Direct Drive |
| Spindle RPM | 20,000 |
| Rapid Traverse | 42,000 mm/min (X&Y), 56,000 mm/min (Z) |
| Cutting Feedrate | 32,000 mm/min |
| Maximum Workpiece | 400 mm ø x 400 mm |
| Maximum Payload | 150 kg |
| ATC Capacity | 14 (21 opt) |
| Tool to Tool | 2.5 |
| Chip to Chip | 4.3 |
| Maximum Tool Length | 150 mm |
| Maximum Tool Diameter | 50 mm |
| Maximum Tool Weight | 2 kg |
