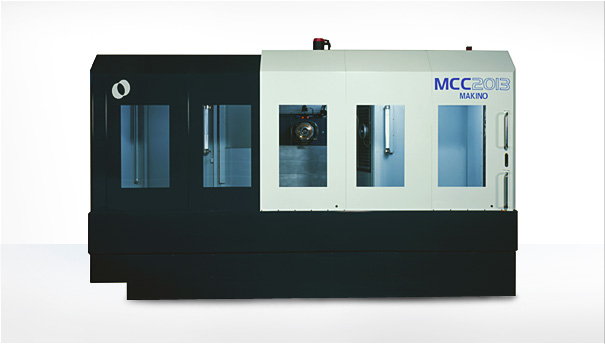

MCC2013 Horizontal MachineHMC for Die Mold Machining
The MCC2013 HMC is the complete package for high-efficiency die mold machining with features that enable multi-face machining in a single setup. These include a high-speed 15,000 min-1 spindle, 16m/min cutting feedrate, high-speed, high-accuracy GI.3 control and a thermal stability system. The MCC also features a semi-floating slideway system to provide a cutting feedrate of 16 m/min, even with heavy workpieces on the table. The adoption of 0.1µm GI.3 control substantially improves machining accuracy and machined surface quality.
Specs
| Pallet | 2200 x 1000 mm |
| X | 2000 mm |
| Y | 1350 mm |
| Z | 1000 mm |
| Spindle RPM | 15,000 (8K) |
| Rapid Traverse | 16000 mm/min |
| Cutting Feedrate | 630 in/min |
| Maximum Workpiece | 2500 x 1100 x 1700 mm |
| Maximum Payload | 10,000 kg |
| ATC Capacity | 30 (60, 90, 120, 180, 280) |
| Tool to Tool | |
| Chip to Chip | |
| Maximum Tool Length | 21.65″ |
| Maximum Tool Diameter | 7.87″ |
| Maximum Tool Weight | 44 lbs |
