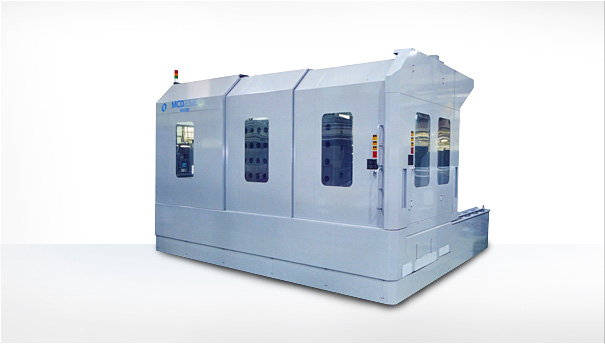

The MCD2516 HMC is designed for high-definition machining of dies/molds with deep, intricate cavities. It achieves highly stable and accurate machining of workpieces weighing up to 15 tons. A highly rigid spindle with excellent workpiece accessibility boosts machining efficiency for deep cavities. A double spiral chip conveyor efficiently removes large volumes of chips and coolant.
Specs
| Pallet | 3000 x 1500 mm |
| X | 2500 mm |
| Y | 1600 mm |
| Z | 1300 mm |
| Spindle RPM | 4,000 (15K) |
| Rapid Traverse | 16000 mm/min |
| Cutting Feedrate | 630 in/min |
| Maximum Workpiece | 2500 x 1900 x 1900 mm |
| Maximum Payload | 33,000 lbs |
| ATC Capacity | 30 (60, 200) |
| Tool to Tool | |
| Chip to Chip | |
| Maximum Tool Length | 23.6″ |
| Maximum Tool Diameter | 11.81″ |
| Maximum Tool Weight | 66 lbs |
