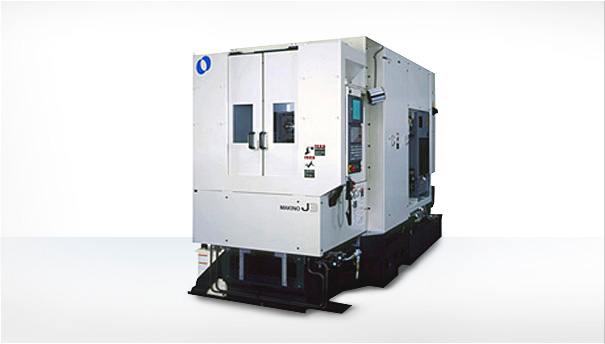

Designed for flexible transfer lines, the J3 is primarily intended for the economic machining of mass-produced aluminum automotive parts. Its high spindle speed and excellent accuracy make it the perfect choice for simple, cost-effective machining lines. The “stacked axes” design enables the J3 to be easily integrated into different automation concepts by insulating all linear movement from the worktable/fixture.
Specs
| Pallet | 400 mm |
| X | 630 mm |
| Y | 400 mm |
| Z | 400 mm |
| Spindle RPM | 16000 |
| Rapid Traverse | 60,000 mm/min |
| Cutting Feedrate | 1,969 in/min |
| Maximum Workpiece | 710 mm x 580 mm |
| Maximum Payload | |
| ATC Capacity | 30 tools |
| Tool to Tool | 2.3 sec |
| Chip to Chip | 2.6 sec |
| Maximum Tool Length | 12.2″ |
| Maximum Tool Diameter | 4.9″ with limitation |
| Maximum Tool Weight | 11 lbs |
